Example of a 30×50 House Submission Drawing (For Plan Approval)
Introduction
Designing a 30×50 House Submission Drawing (on a 1,500 sq. ft. plot) is one of the most common residential planning formats in India. Whether you are an architect, a civil engineer, or a homeowner, preparing accurate submission drawings for plan approval is essential for obtaining permission from local authorities.
In this guide, we delve into a detailed example of a complete submission drawing for a 30×50 house, covering the plans, elevations, sections, and all necessary details.
📐 Plot Details (30×40 House)
- Plot Size: 30 ft × 50 ft
- Total Area: 1500 sq ft
- Plot Type: Residential
- Road Facing: East/West/North/South (depends on site)
- Setbacks (Typical as per local bye-laws):
- Front: 5 ft
- Rear: 3–5 ft
- Side: 3 ft
Note: Setbacks vary as per municipal rules.

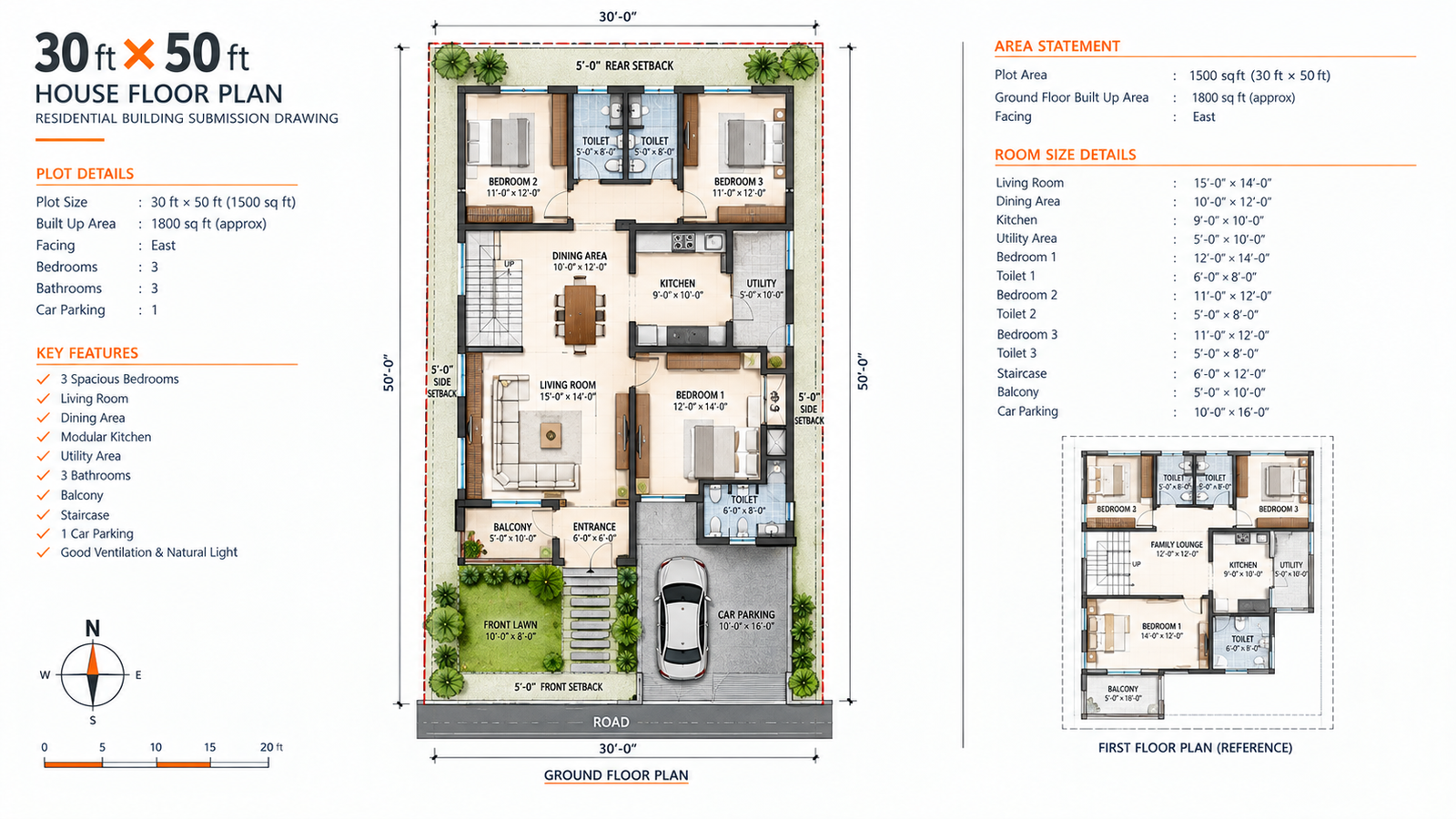

🏠 Ground Floor Plan (Example Layout)
✔ Room Distribution:
- Living Room
- Bedroom
- Bedroom 2
- Kitchen
- Toilet/Bath
- Staircase
- Parking Space (if required)
✔ Key Planning Points:
- Proper ventilation and natural lighting
- Functional circulation space
- Vaastu consideration (optional)
- Door and window placement

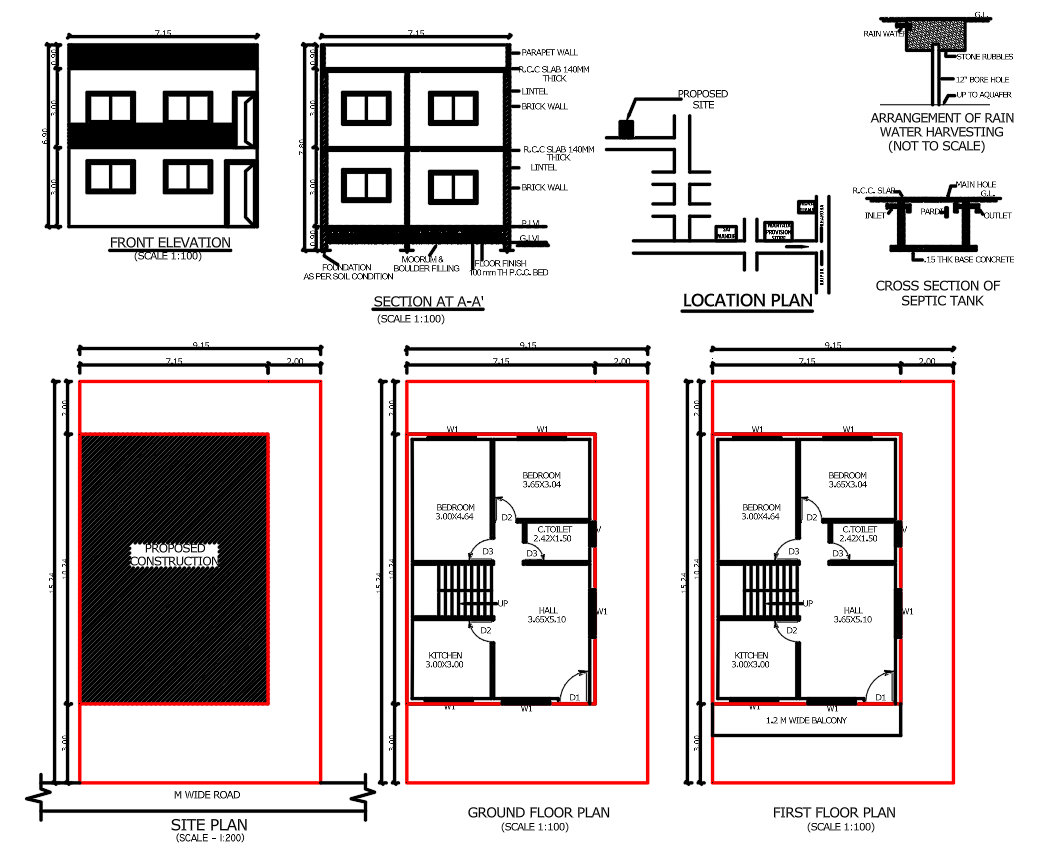

📏 Required Drawings for House Submission Drawing
1. Site Plan
Includes:
- Plot boundary with dimensions
- Road width
- North direction
- Setbacks clearly marked
- Drainage and septic tank location
2. Floor Plan
Must show:
- Wall thickness
- Room names and sizes
- Door/window sizes
- Staircase details
- Built-up area calculation

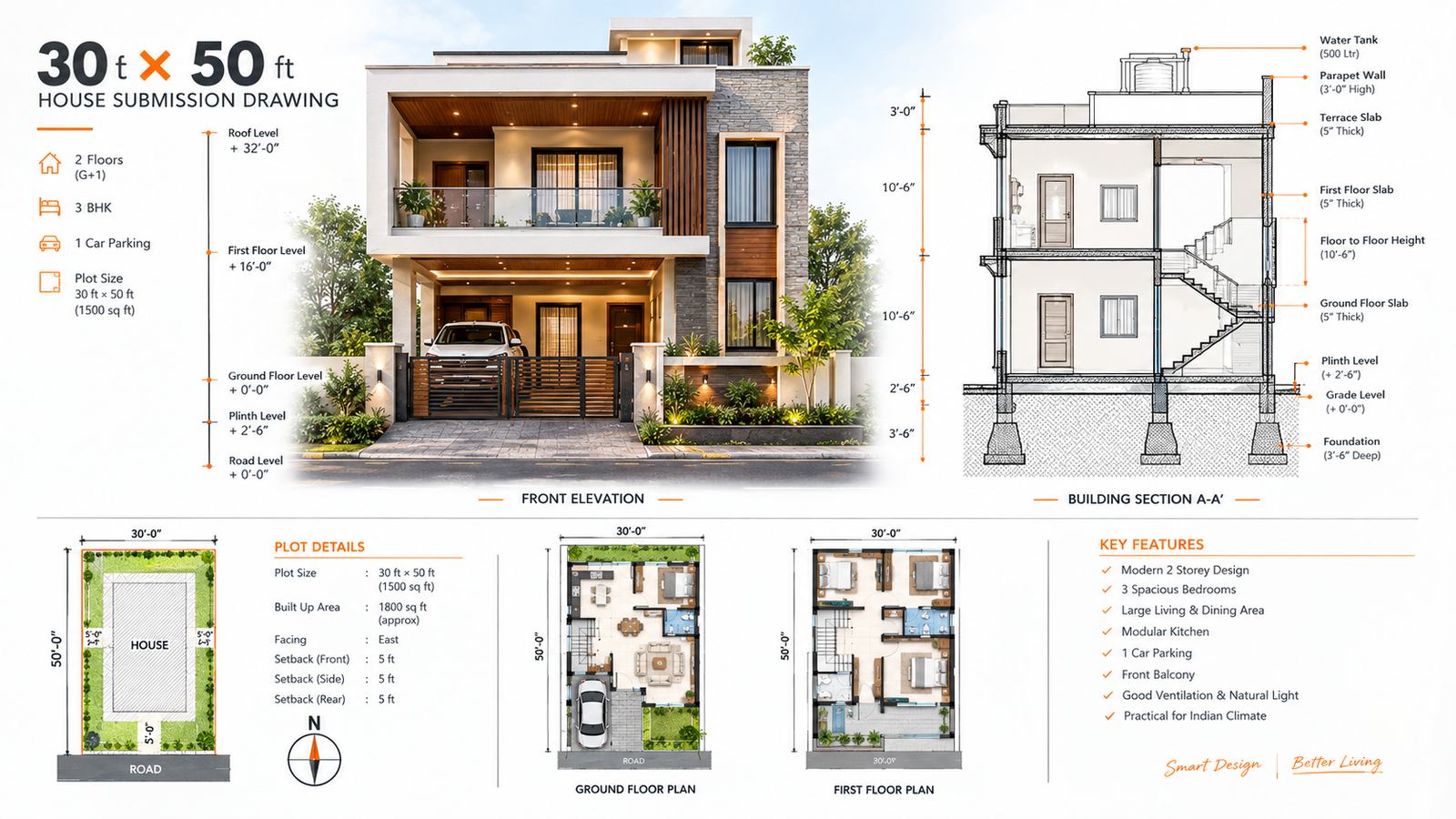

3. Elevation Drawing
Shows:
- Front view of the building
- Height of building
- Architectural elements (parapet, chajja, etc.)
- Ground level and plinth level
4. Section Drawing
Includes:
- Foundation details
- Floor-to-floor height
- Slab thickness
- Staircase section
- Roof and parapet height
📊 Area Statement (Example)
Introduction
- Plot Area: 1500 sq ft
- Ground Coverage: ~700–800 sq ft
- Built-up Area: As per design
- FAR (Floor Area Ratio): As per local authority
📝 Important Notes in House Submission Drawing
- Scale (1:100 or 1:50)
- Owner name and project title
- Architect/Engineer signature & license number
- North direction
- Drawing number and date
- Material specifications
⚠️ Common Mistakes to Avoid
❌ Incorrect setbacks
❌ Missing dimensions
❌ No north direction
❌ Improper layer management in AutoCAD
❌ No section or elevation
🛠 AutoCAD Tips for House Submission Drawing
- Use proper layer standards (Wall, Text, Dimension, etc.)
- Maintain line weights for clarity
- Use blocks for doors/windows
- Keep drawing clean and professional
📋 Documents Required Along with Drawing
- Ownership documents
- ID proof
- Property tax receipt
- Structural safety certificate
- Application form
📌 Approval Process (Brief)
- Prepare drawings
- Submit to local authority/municipality
- Verification of drawings
- Correction (if required)
- Final approval
✅ Conclusion
This is a meticulously crafted submission drawing for a 30×50 house, designed to ensure approval without any delays. It is essential to strictly adhere to local building bylaws, maintain the accuracy of the drawings, and include all necessary details—such as the plan, elevations, and sections.
This submission drawing is ideal for standard-sized plots and serves as a practical, compact residential design solution, making it highly popular among both homeowners and professionals.
A 30×50 house submission drawing is a complete set of drawings (plan, elevation, section, and site plan) prepared for building plan approval by local authorities.
The required drawings include:
- Site Plan
- Floor Plan
- Elevation
- Section Drawing
- Area Statement
A 30×50 plot means:
- Width: 30 feet
- Length: 50 feet
- Total Area: 1500 sq ft
Common scales used:
- 1:100 (standard)
- 1:50 (detailed drawings)
Yes, AutoCAD is widely used to create professional submission drawings with accurate dimensions, layers, and annotations.
