Documents and Drawings Required for Building Plan Approval (A Complete Guide)
Introduction
Obtaining approval for a building plan is a crucial step that must be taken before commencing any construction project. Whether you intend to construct a residential home or a commercial building, possessing the appropriate documents and technical drawings is essential for securing approval from local authorities or the municipal corporation.
In this guide, we will explain—in a clear and professional manner—all the Documents Required for Building Plan for obtaining building plan approval.
📌 Why is Building Plan Approval Essential?
Let’s understand in detail why Documents Required for Building Plan and building plan approval is necessary:
- It ensures that construction is carried out legally.
- It safeguards against demolition or fines.
- It ensures compliance with local building regulations.
- It facilitates access to essential amenities such as water, electricity, and drainage.

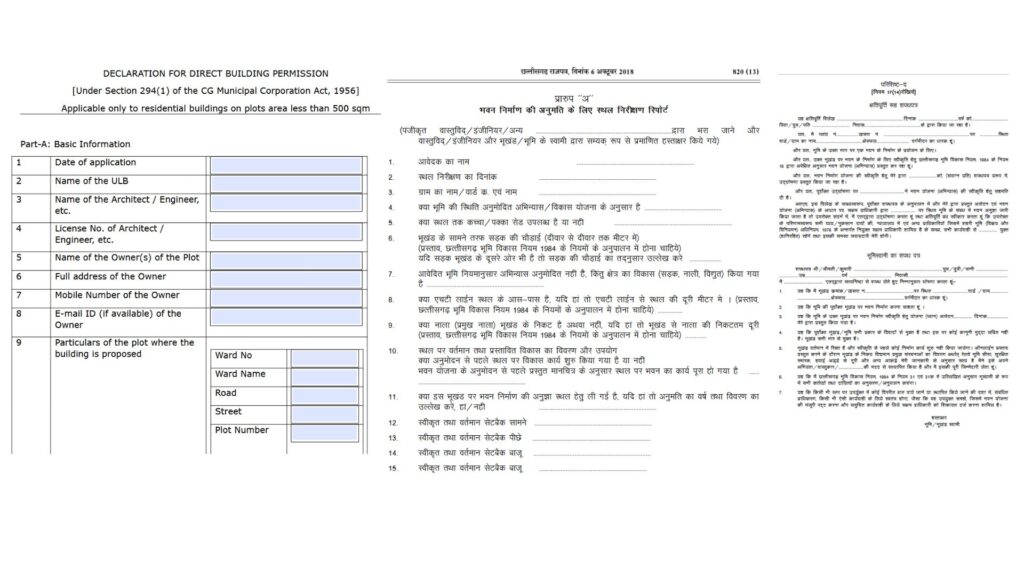

📄 List of Documents Required for Building Plan Approval
The following Documents Required for Building Plan approval:

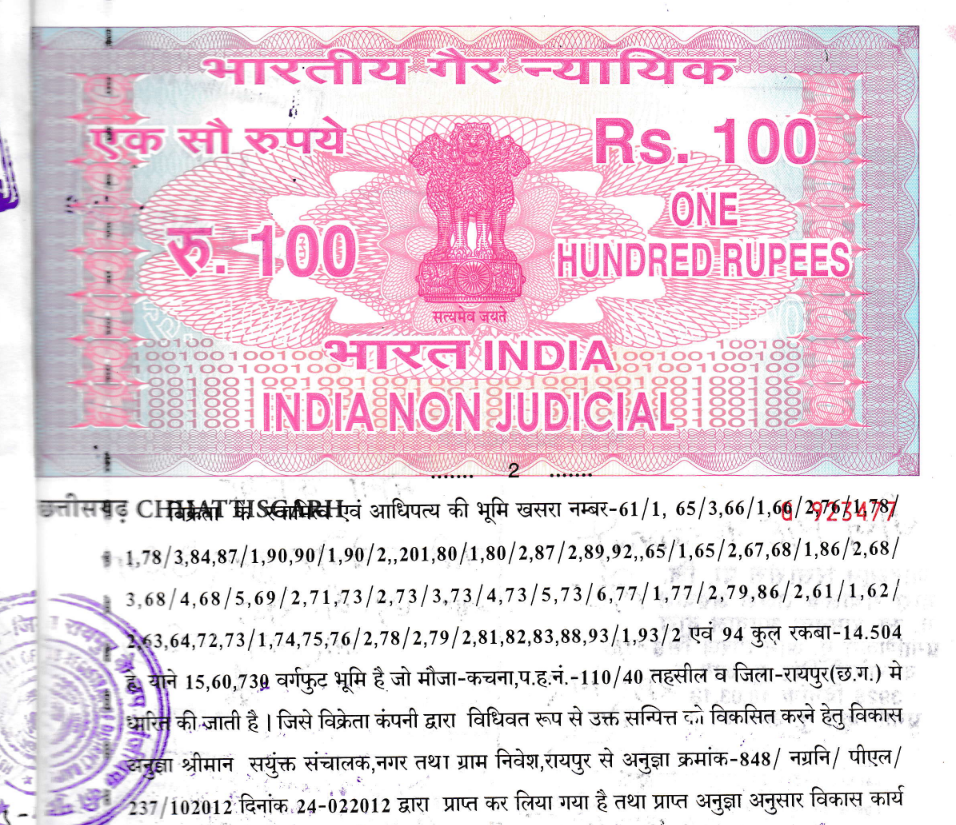

1. Ownership Documents
- Sale Deed / Title Deed
- Land Registration Documents
- Property Tax Receipt
2. Proof of Owner's Identity
- Aadhaar Card
- PAN Card
- Passport-sized Photographs
3. Site Documents
- Plot Location Map
- Land Use Certificate (Residential/Commercial)
- Encumbrance Certificate
4. NOC (No Objection Certificate)
Based on the project and location:
- Fire Department NOC
- Airport Authority NOC (If applicable)
- Environmental Clearance
- Water and Sewerage Department NOC
5. Soil Testing Report
- Essential for structural safety
- Crucial for multi-storied buildings
6. Structural Stability Certificate
- Issued by a licensed structural engineer
- Ensures the safety of the building
7. Architect License Certificate
Drawings must be signed by a registered architect or engineer

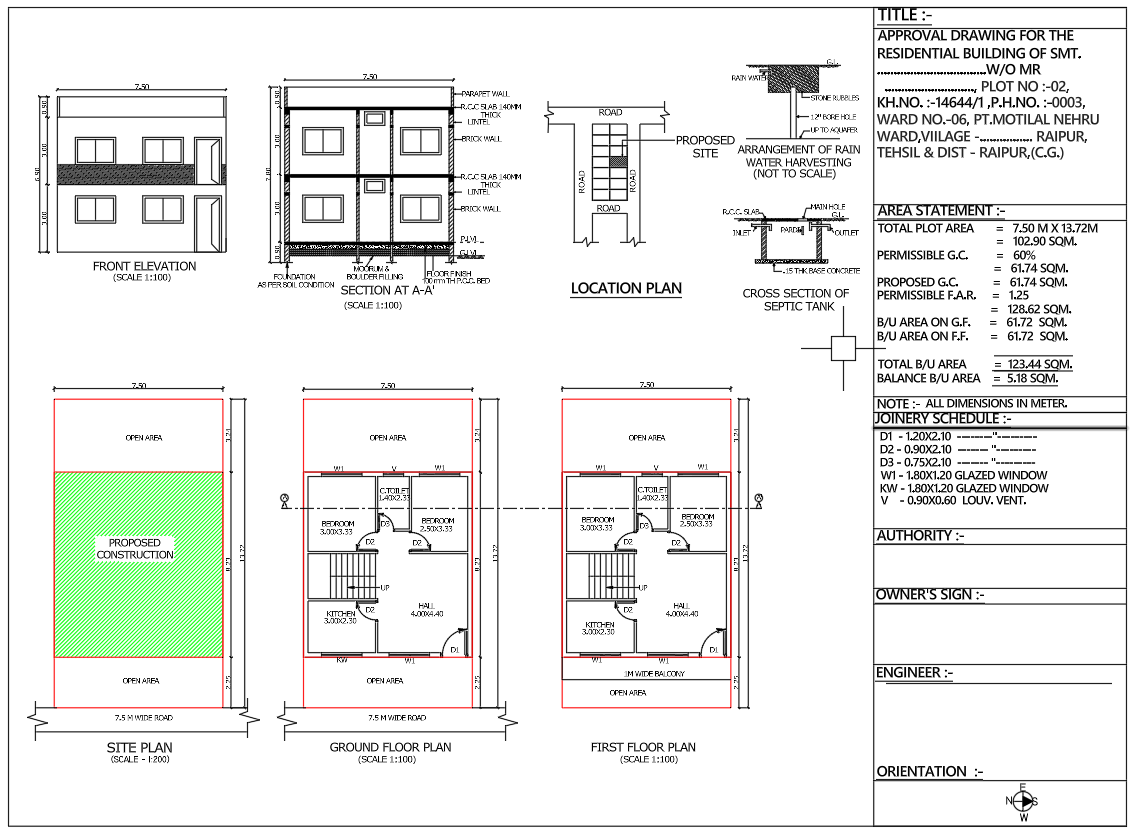

📐 Essential Drawings for Building Plan Approval
These technical drawings constitute the most critical component of the submission process. They are prepared using software such as AutoCAD.

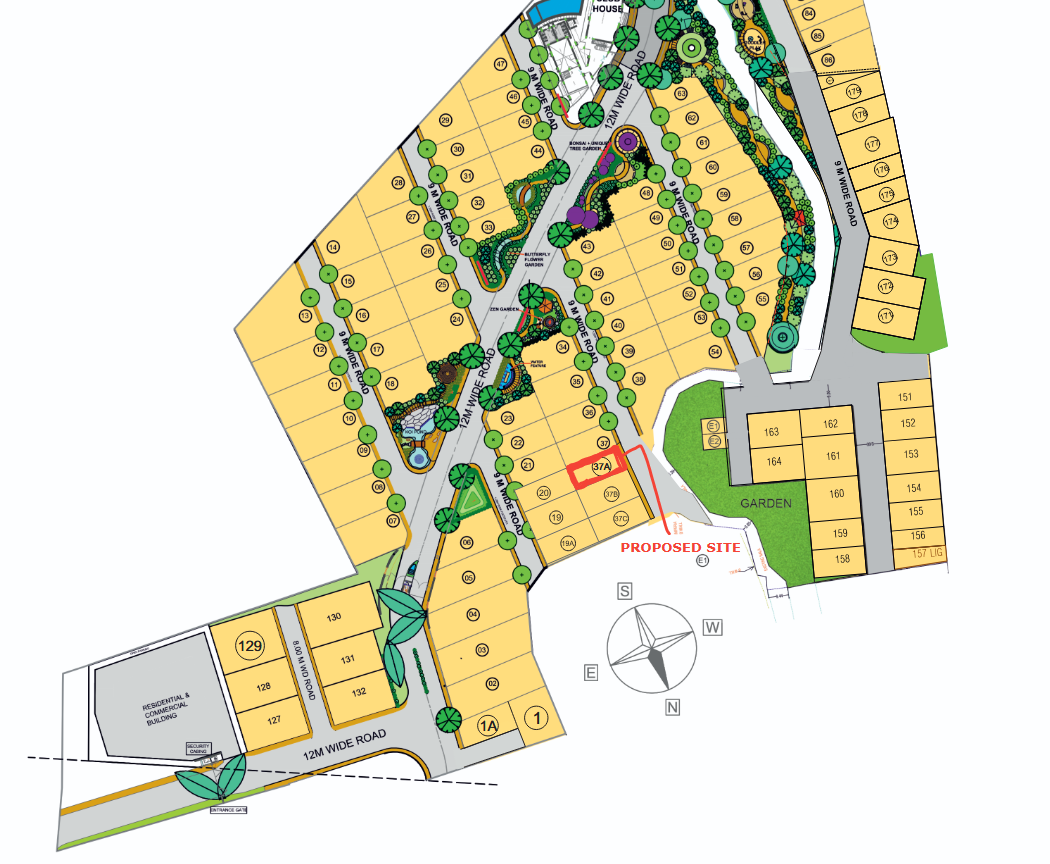

1. Site Plan
- Depicts the plot boundaries
- Shows road access and surrounding buildings
- Indicates the North direction
2. Building Plan (Floor Plan)
- Shows the layout and dimensions of rooms
- Indicates wall thickness
- Specifies the locations of doors and windows
3. Elevation Drawing
- Presents the front and side views of the building
- Illustrates the exterior appearance
- Details the vertical heights
4. Section Drawing
- Represents a vertical cross-section of the building
- Shows floor heights and foundation details
5. Foundation Plan
- Details the footings
- Shows the layout of columns
6. Roof Plan
- Depicts the layout of the roof
- Indicates the slope for water drainage
7. Electrical Layout
- Shows the placement of switches and lighting points
- Details the wiring layout
8. Plumbing Layout
- Shows water supply lines
- Details the drainage and sanitation systems`
9. Parking Layout
Particularly essential for apartment complexes and commercial buildings
📊 Additional Requirements (May vary by location)
- Rainwater Harvesting Plan
- Green Building Compliance (For large projects)
- Lift Layout (For multi-storied buildings)
- Fire Safety Plan
⚠️ Common Mistakes to Avoid
- Incomplete documents submission
- Incorrect plot measurements
- Not following local bylaws
- Unsigned drawings
- Missing NOCs
🏢 Approval Authorities
- Approval is usually taken from:
- Municipal Corporation
- Development Authority
- Local Panchayat (for rural areas)
⏳ Approval Time
Usually takes 15–45 days depending on city and project size
🧾 Conclusion
Documents Required for Building Plan and Building plan approval is a crucial step in any construction project. With the submission of the correct documentation and precise drawings, approval can be obtained with ease, thereby avoiding legal complications. It is always advisable to work in collaboration with a professional architect or engineer and to strictly adhere to local building regulations.
Yes, without approval construction is illegal and may lead to penalties or demolition.
No, drawings must be signed by a licensed architect or engineer.
It depends on plot size, location, and building type.
You may face legal action, penalties, or demolition.
