23x50 East Facing 4BHK House Plan | 1166 Sqft Plot | Detailed Floor Plan and Area Statement
Overview of the 23x50 East Facing 4BHK House Plan
If you’re looking for a 23×50 East Facing house plan with a 4BHK layout, parking, a balcony, and an open terrace, this is the perfect example of modern bungalow design. This 23×50 East Facing 4BHK house plan is the best example of maximum space utilization on a compact plot.

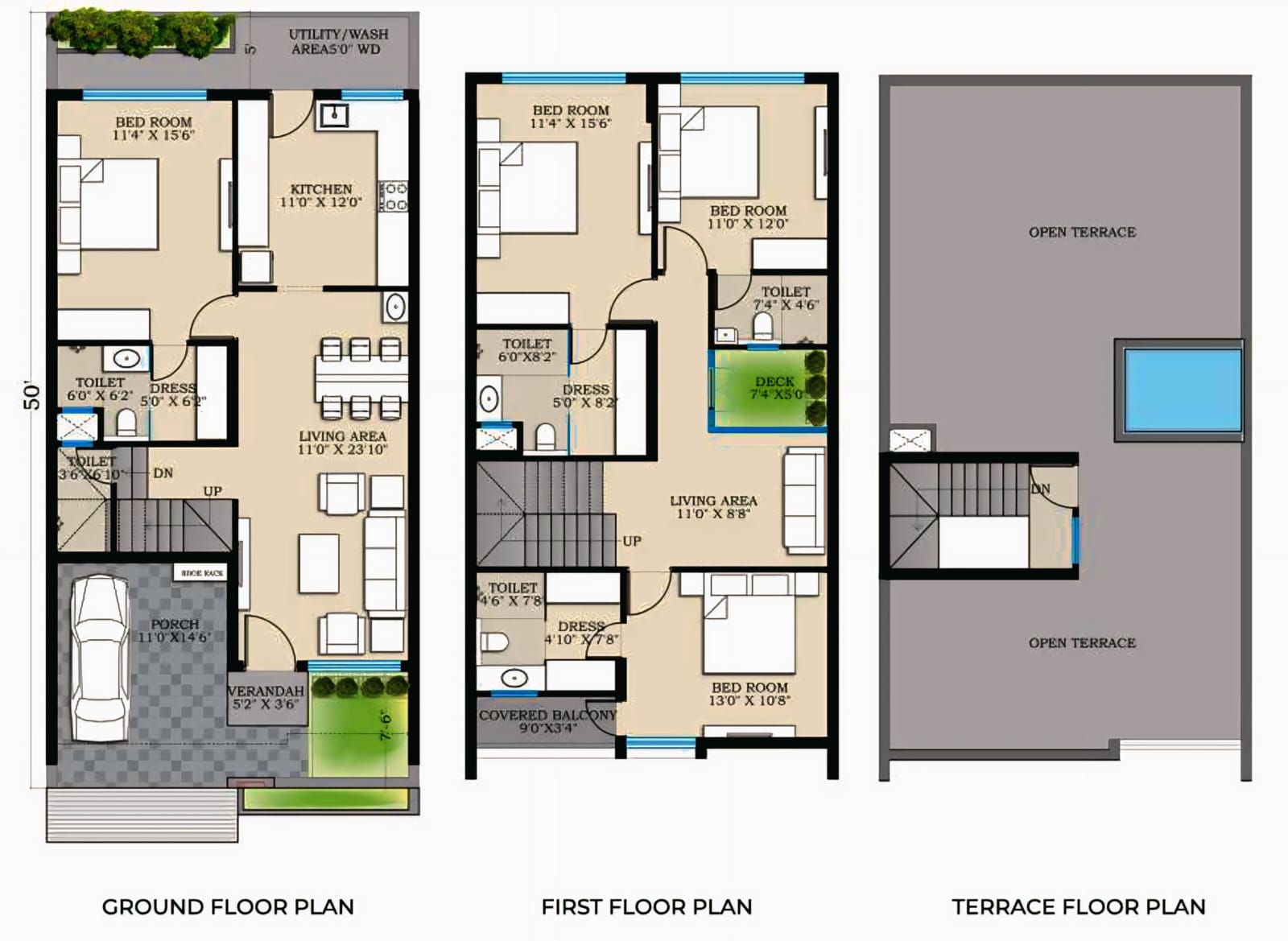

In this blog post, we’ll explain the area statement, ground floor plan, first floor layout, and terrace plan of this 4BHK East Facing bungalow in detail.

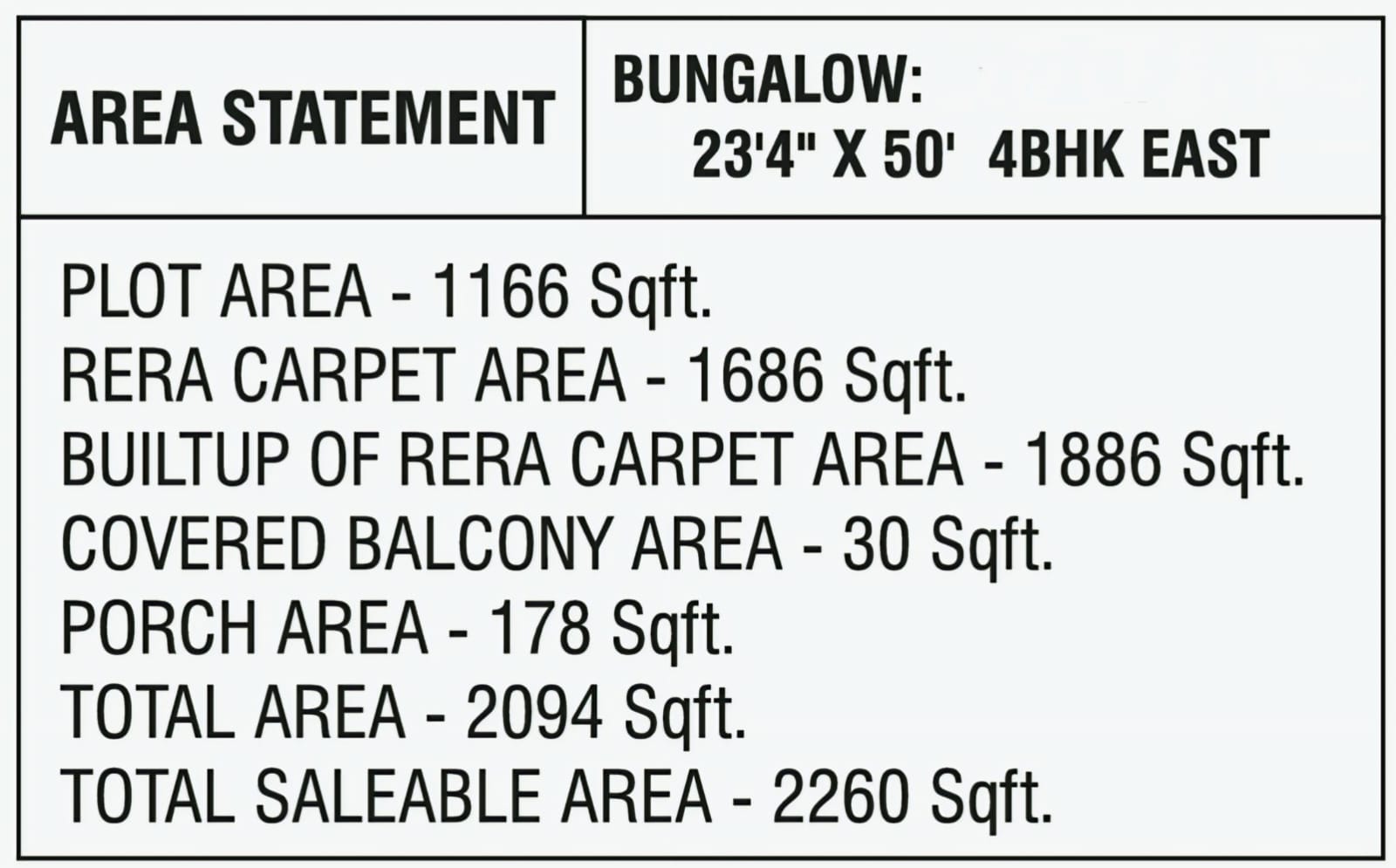

Plot Information and Area Statement
- Plot Size: 23’4″ x 50′
- Plot Area: 1166 Sqft
- RERA Carpet Area: 1686 Sqft
- Built-up Area (including walls): 1886 Sqft
- Covered Balcony Area: 30 Sqft
- Porch Area: 178 Sqft
- Total Built-up Area: 2094 Sqft
- Total Saleable Area: 2260 Sqft
This area calculation for the 23×50 East Facing 4BHK House Plan is essential for residential approval and estimation, especially in RERA compliant projects.

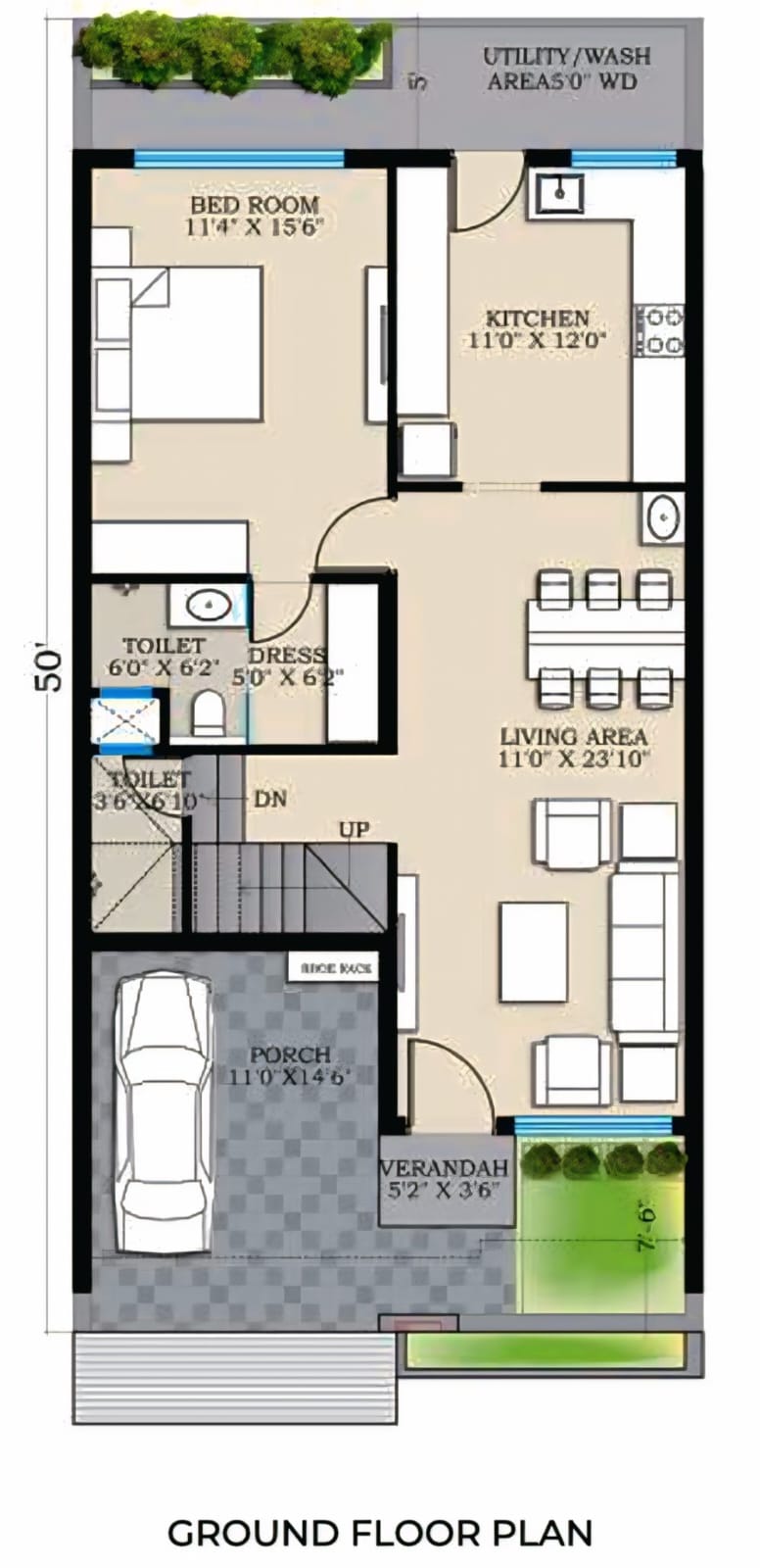

Ground Floor Plan Details
The ground floor of this 23×50 East Facing 4BHK House Plan is designed for practical family living.
1️⃣ Porch and Veranda
- Porch Size: 11’0″ x 14’6″
- Veranda Size: 5’2″ x 3’6″
Car parking ke liye sufficient space
Side me small green landscaping area
2️⃣ Living Area
- Living Area Size: 11’0″ x 23’10”
- Large combined drawing and dining concept
- Direct natural light ventilation from the front
3️⃣ Kitchen + Utility
- Kitchen Size: 11’0″ x 12’0″
- Utility/wash area 5′ wide provided at the rear
- A perfect working triangle is maintained
4️⃣ Bedroom (Ground Floor)
- Bedroom Size: 11’4″ x 15’6″
- Senior Citizen Friendly Space
- Attached Toilet + Dressing Room
- Attached Toilet Size: 6’0″ x 6’2″
- Dress Room Size: 5’0″ x 6’2″
5️⃣ Common Toilet
- Common Toilet Size: 3’6″ x 6’10”
- Easy to access from the living area.
👉 Stairs are located in the center, allowing for comfortable vertical circulation.
First Floor Plan Layout
The first floor of this 23×50 East-Facing 4BHK House Plan has been designed with privacy, ventilation, and functional zoning in mind. The stairs ascend centrally from the ground floor, ensuring smooth circulation. The first floor features a total of three bedrooms and living space.
1️⃣ Master Bedroom
- Bedroom Size: 11’4″ x 15’6″
- This is the most spacious bedroom on the first floor.
- Attached Toilet + Dressing Room
- Dress Room Size: 5’0″ x 8’2″
- Attached Toilet Size: 6’0″ x 8’2″
- Attached dressing area for wardrobe and privacy
- Dress-connected attached toilet (WC + basin + shower)
2️⃣ Bedroom 2
- Bedroom 2 Size: 11’0″ x 12’0″
- Comfortable bedroom size
- Attached Toilet
- Attached Toilet Size: 7’4″ x 4’6″
- With balcony/deck connection
3️⃣ Bedroom 3
- Bedroom 3 Size: 13’0″ x 10’8″
- This is a front-facing bedroom. Better width for bed and study space, as well as front-facing ventilation.
- Attached Toilet + Dressing Room
- Dress Room Size: 4’10” x 7’8″
- Attached Toilet Size: 4’6″ x 7’8″
- Attached dressing area for wardrobe and privacy
- Attached toilet connected to dressing room (WC + basin + shower)
4️⃣ Family Living Area
- Family Living Size: 11’0″ x 8’8″
- Private family lounge space that serves as a buffer zone between bedrooms
5️⃣ Covered Balcony
- Covered Balcony Size: 9’0″ x 3’4″
- Front elevation improves aesthetics

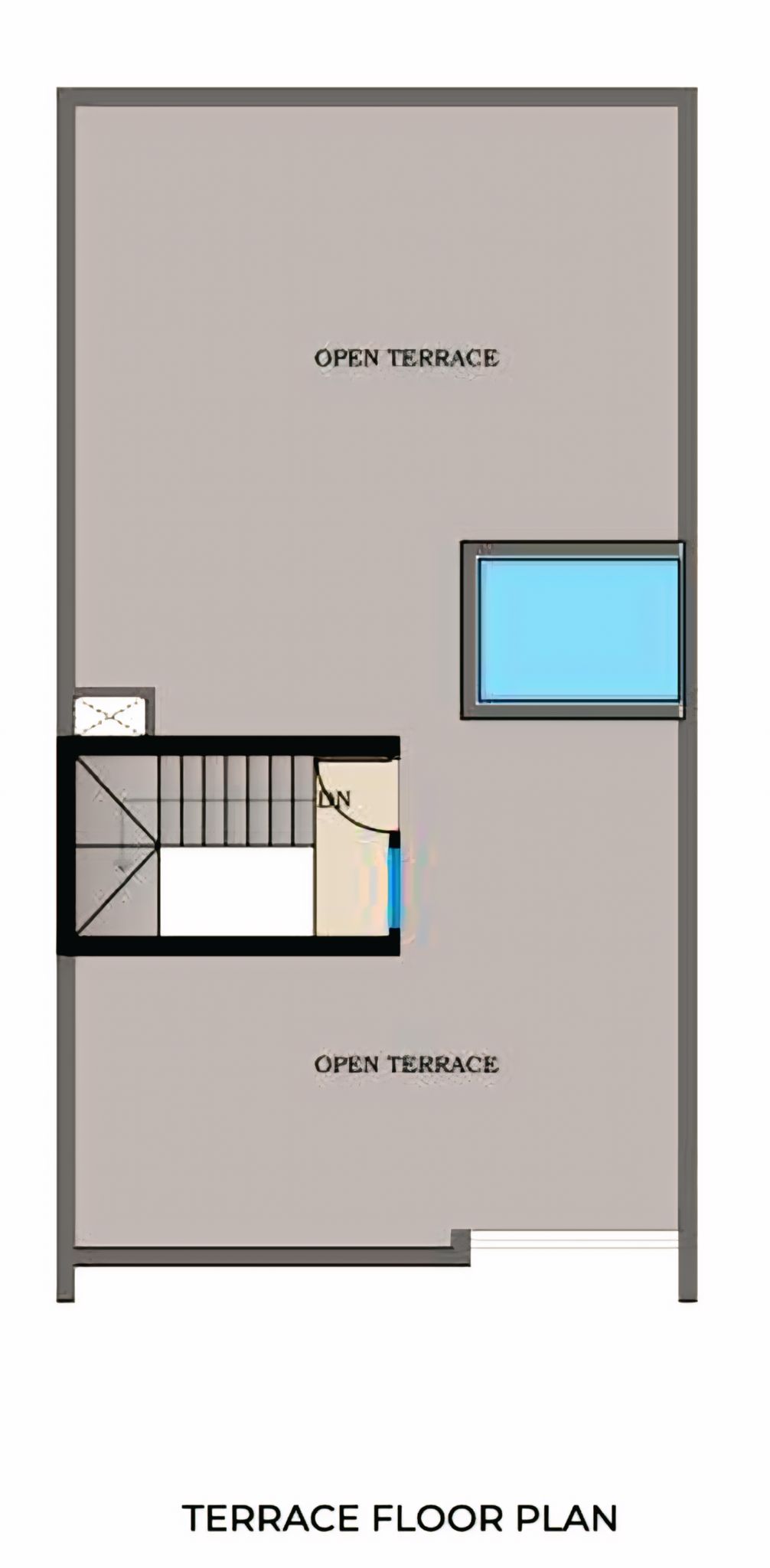

Terrace Floor Plan
- Large open terrace space.
- Which provides ample space for future solar panel installation.
- Headroom is provided on the short stairs.
- This terrace is perfect for future expansion or entertaining.
Key Features of This 23x50 East Facing 4BHK House Plan
✔ East facing entrance (Vastu friendly)
✔ Ground floor bedroom for elderly
✔ Separate dress area in bedrooms
✔ Utility space in kitchen
✔ Spacious living-dining layout
✔ Open terrace for future extension
✔ Compact plot in 4BHK planning
Why This 23x50 East Facing 4BHK House Plan is Ideal for Urban Plots?
Why is this 23×50 East Facing 4BHK House Plan ideal for urban plots?
These days, plots measuring 20–25 feet wide are common in urban areas. This design:-
- Minimal space wastage
- Proper ventilation shafts
- Useful staircase space
- Parking and greenery
This type of plan is a budget-friendly and practical solution for middle-class families.
Construction Planning Tips (Expert Advice)
As a civil engineer/planner, you should keep in mind:-
- Maintain a minimum stair width of 3’6″
- Require toilet ventilation shafts
- Properly align the beam-column grid
- Locate the water tank according to the load distribution on the roof
- Plan plumbing lines in vertical stacking
Conclusion
This 23×50 East-Facing 4BHK House Plan is a practical and well-planned design for a compact plot. It features proper space utilization, natural ventilation, and a privacy-focused layout. This layout is an ideal option for a modern, comfortable, and future-ready home on a small urban plot.
Yes, 4 bedrooms + parking + terrace is possible with proper planning.
Yes, the terrace has been kept open for future construction.
East facing entrance is considered auspicious in Vaastu, especially for morning sunlight.
