22x50 North-Facing 3BHK House Plan | Modern G+1 Bungalow Design
Overview of the 22x50 North-Facing 3BHK House Plan
This 22×50 west-facing 3BHK house plan is a well-planned G+1 residential bungalow designed for an 1100 square foot plot. This compact house layout offers smart space utilization, proper ventilation, a balcony, a terrace, parking, and separate living zones, making it ideal for small to medium-sized families.
This design focuses on functionality, privacy, and modern architecture, making it suitable for urban residential plots in India.
Plot Information
- Plot Size:- 22’4″ × 50’0″
- Plot Area:- Approximately 1100 Sqft
- Facing:- West Facing
- Configuration:- G+1 Floor
- Bedrooms:- 3
- Parking:- 1 Car Porch
This 22×50 North Facing 3bhk house plan is perfect for narrow frontage plots that require careful planning.
Ground Floor Layout of a 22x50 North Facing 3BHK House Plan
The ground floor plan is designed with practical zoning and easy circulation.
1️⃣ Porch Area
Porch Size: 9’0″ × 13’6″
The porch area provides a large parking space for one car with direct entry into the house.
2️⃣ Entrance Lobby
The 5′ wide entrance lobby provides privacy to the main living area.
3️⃣ Living Room
Living Room Size: 12’0″ × 11’2″
The living room provides comfortable seating for guests and family gatherings.
4️⃣ Dining Area
Dining Area Size: 10’0″ × 13’4″
The dining area is located between the kitchen and living room for easy access.
5️⃣ Kitchen
Kitchen Size: 9’0″ × 11’6″
The kitchen is a well-planned modular kitchen with adequate ventilation.
6️⃣ Utility/Wash Area
A 5′ wide utility space is provided attached to the kitchen for laundry and service purposes.
7️⃣ Bedroom (Ground Floor)
Bedroom Size: 12’4″ × 11’6″
Includes:-
Dressroom: 5’0″ × 6’0″
Attached Toilet: 6’0″ × 6’0″
This bedroom is perfect for elderly family members.
8️⃣ Common Toilet
Common Toilet Size: 3’8″ × 6’6″
Stairs are located in the center for easy vertical circulation.

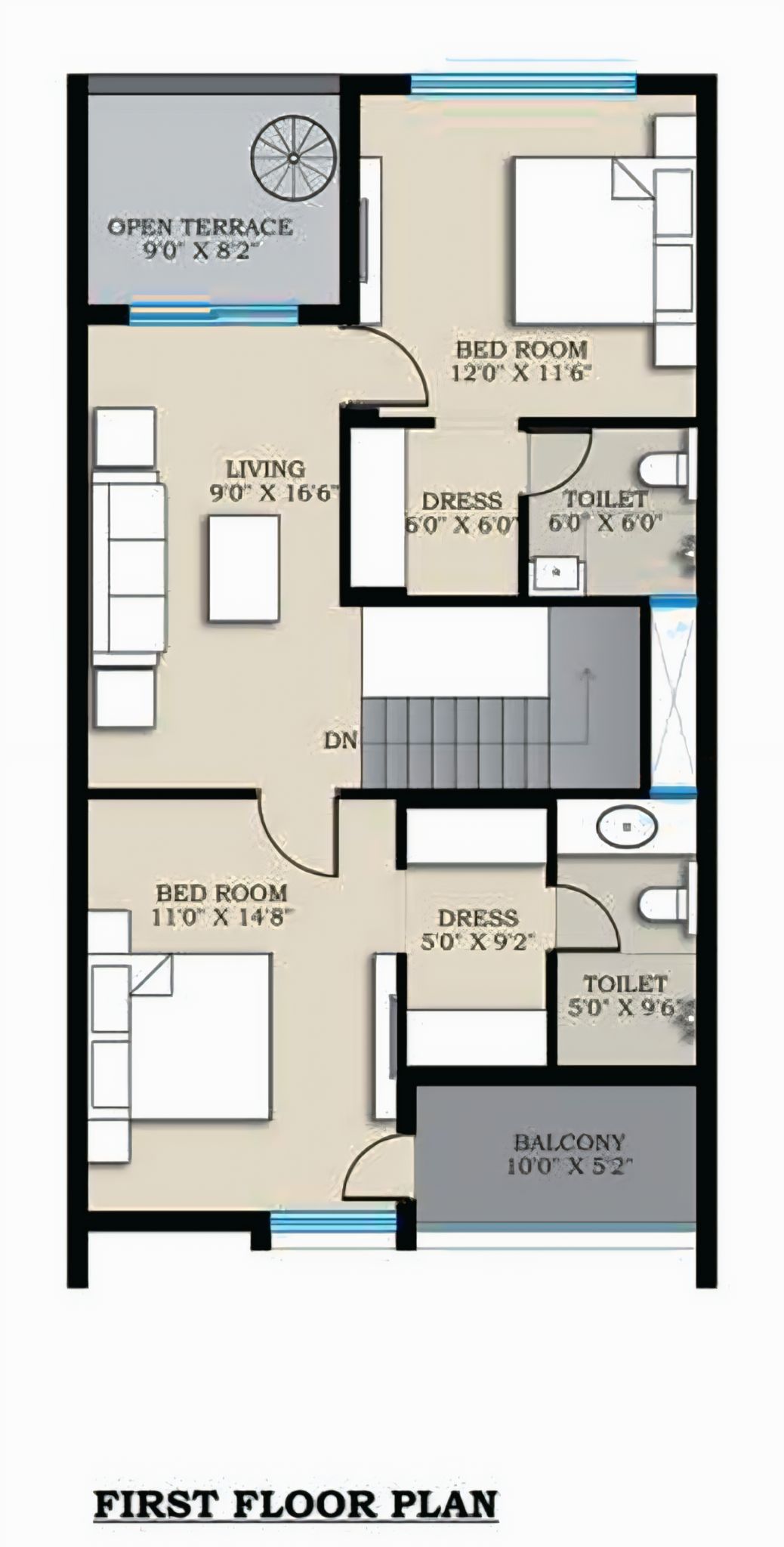

First Floor Layout of a 22x50 North Facing 3BHK House Plan
The first floor features a private family space.
1️⃣ Family Living Area
Family Living Area Size: 9’0″ × 16’6″
This can be used as a TV lounge or family sitting area.
2️⃣ Bedroom 1
Bedroom-1 Size:- 12’0″ × 11’6″
Includes:-
Dress:- 5’0″ × 6’0″
Toilet:- 6’0″ × 6’0″
3️⃣ Bedroom 2
Bedroom-2 Size:- 11’0″ × 14’8″
Includes:-
Dress:- 5’0″ × 9’2″
Toilet:- 5’0″ × 9’6″
4️⃣ Balcony
Balcony Size:- 10’0″ × 5’2″
Provides outdoor connection and ventilation.
5️⃣ Open Terrace
Open Terrace Size: 9’0″ × 8’2″
Can be used for sitting, gardening, or future extensions.
This 22×50 North facing 3BHK house plan ensures proper daylight and air circulation on both the floors.
Highlights of the 22x50 North-Facing 3BHK House Plan
✔ Compact north-facing layout
✔ Adult bedroom on the ground floor
✔ Bedroom with attached dressing room and toilet
✔ Separate dining area
✔ Balcony and open terrace
✔ Smart staircase location
✔ Ideal for an 1100 sqft plot
Why Choose This 22x50 North Facing 3BHK House Plan?
This 22×50 North Facing 3BHK House Plan is perfect for urban homeowners who want a functional G+1 home that maximizes space. This design ensures privacy between the living and bedroom areas, while also maintaining natural light and ventilation.
North-facing homes are very popular in India, and with proper architectural planning, they offer excellent comfort and energy efficiency.
Conclusion
If you’re looking for a compact, modern, and well-planned G+1 bungalow design, this 22×50 north-facing 3bhk house plan is the perfect choice. With smart zoning, an attached toilet, a balcony, a terrace, and parking space, it’s ideal for comfortable family living.
